Explosion Proof Vacuums
For collecting dust in hazardous environments
Explosion-Proof Industrial Vacuums
Examples of potentially combustible dust include cereals, flour, starch, sugar, animal feed, light metals, coal, plastics, and textiles. If there is a sufficient concentration of these substances, mixed with air, an ignition source can cause an explosion. Nilfisk vacuum cleaners prevent the triggering of potentially explosive mixtures.
breadcrumb >> list
Safe Collection of Combustible Dust
Full Line EXP Brochure
Nilfisk Three-Phase Explosion-Proof Industrial Vacuum Cleaners
VHT456 EXP Vacuum Brochure

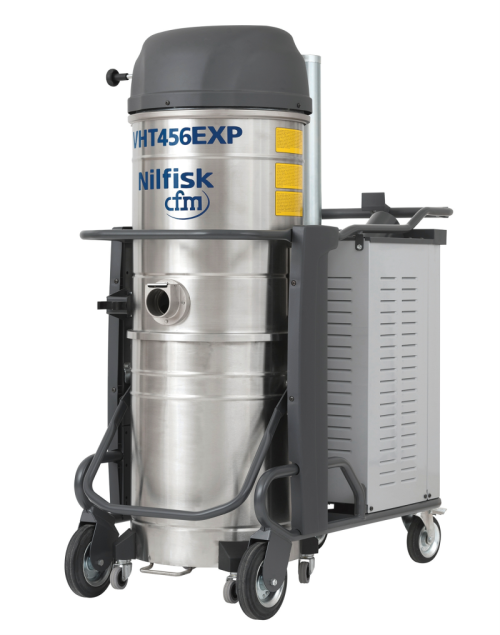

VHT456 EXP
The VHT456 EXP delivers continuous duty operation for use in Class I (Group D) and Class II (Groups E, F and G) rated work environments.
The VHT456 EXP three phase, continuous duty vacuum is ideal for collecting potentially combustible dusts and can be outfitted for a wide range of industrial applications. Standard equipment includes an antistatic polyester star filter with a 21 sq ft surface area, and can be upgraded to alternative filter media options. An upstream HEPA filter is standard on some models and can be easily added to others to stop fine or harmful dusts from passing through the vacuum. The standard stainless steel filter chamber and container and fully bonded and grounded chassis, combined with compliance to the strict electrical requirements for portable vacuums to be operated in Class II Division 2 environments deliver optimal operator safety. When propery equipped, Group E metal dusts can be safely contained and neutralized. All are equipped with a manometer that indicates when the main filter requires cleaning and the top mounted manual filter shaker lets the operator de-dust the filter without disassembling the machine.
Third party certified for Class I & II applications Continuous duty, 5.6 kW side channel blower Stainless steel 100 liter container Available immersion eparator for Group E dusts Large antistatic polyester main filter Available upstream HEPA Manual filter shaker Manometer Container with casters and handle 70mm inlet 30 ft power cord with plug
Find T48 & T63 C2D2 Vacuums in the General Brochure

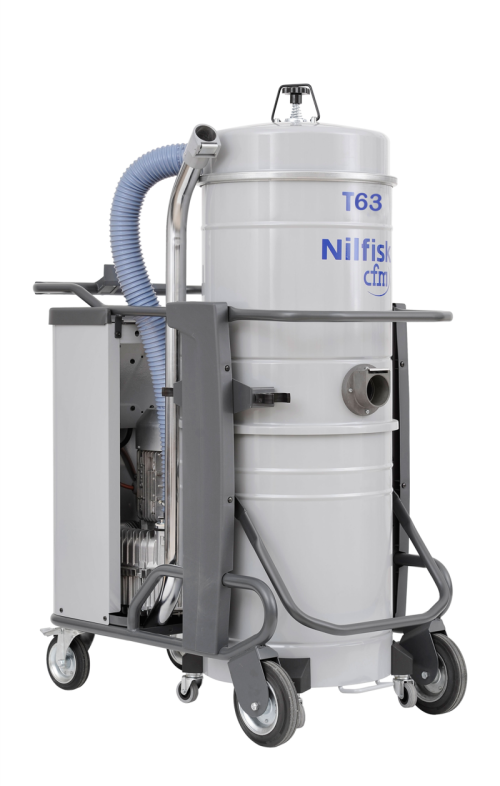

T63 & T48 C2D2
The T63 & T48 C2D2 deliver continuous duty operation for collecting combustible dusts in Class II Division 2 rated work environments.
The T63 & T48 C2D2 three phase, continuous duty vacuums are ideal for collecting potentially combustible dusts and can be outfitted for a wide range of industrial applications. Standard equipment includes an antistatic polyester star filter with a 21 sq ft surface area, and can be upgraded to alternative filter media options. An upstream HEPA filter is standard on some models and can be easily added to others to stop fine or harmful dusts from passing through the vacuum. The standard stainless steel container and fully bonded and grounded chassis, combined with compliance to the strict electrical requirements for portable vacuums to be operated in Class II Division 2 environments deliver optimal operator safety. Even if the work area is not rated, the T63 & T48 C2D2 provide an added measure of safety and meets NFPA guidelines for operating in non-rated environments. All are equipped with a manometer that indicates when the main filter requires cleaning and the top mounted manual filter shaker lets the operator de-dust the filter without disassembling the machine
- Third party certified for Class II Division 2
- T63 offers continuous duty with a 6.3 kW motor
- T48 offer continuous duty with a 4.8kW motor
- Stainless steel 100 liter container
- Large antistatic polyester main filter
- Available upstream HEPA
- Manual filter shaker
- Manometer
- Container with casters and handle
- 70mm inlet
- 30 ft power cord with plug
Nilfisk Air-Powered Explosion-Proof Industrial Vacuum Cleaners
VHC EXP Vacuum Brochure

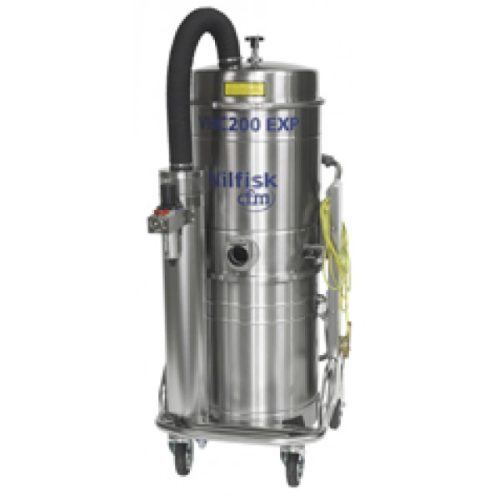

VHC EXP Series Vacuum
VHC110 EXP • VHC120 EXP • VHC200 EXP
The ATEX versions of these vacuums carry an EXP suffix on the model number and are equipped with the PullClean filter cleaning system and the M class filter, for additional safety. The VHC series is a step ahead in compressed air technology with its basic features of more power and less air consumption.
The VHC110EXP and VHC120EXP vacuum cleaners feature the latest in compressed air technology – our customers are surprised by how little air is needed to produce so much power.
The Nilfisk VHC110 is equipped with an innovative system which provides the same high suction power you expect from Nilfisk but uses 60% less compressed air when compared to traditional compressed air vacuum cleaners. This gives the flexibility to use any compressed air generator, significantly amplifying cost savings.
The Nilfisk VHC120 delivers an even more powerful system, allowing 40%* more suction power, compared to the traditional vacuum cleaners equipped with a Venturi system.
The Nilfisk model VHC200, the largest model in the range, provides a high-performance solution for applications where high vacuum suction and airflow are required in heavy-duty applications.
